FoxESS
R100-G2
High-power three-phase inverter for industrial rooftops and larger commercial solar plants.

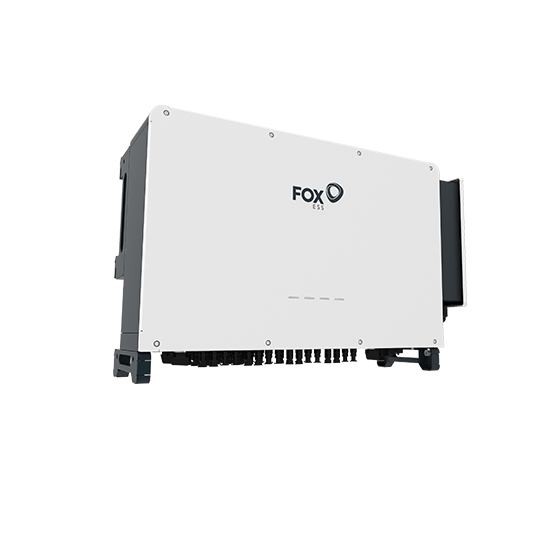

Manufacturer series image; appearance may vary with model and configuration.
Technical specifications
| Parameter | Value |
|---|---|
| Rated AC power | 100 kW |
| Maximum AC apparent power | 110 kVA |
| MPPT / maximum strings | 9 / 18 |
| Maximum DC voltage | 1100 V |
| Maximum efficiency | 98.6% |
| Protection rating | IP66 |
| Dimensions / weight | 975 × 630 × 360 mm / 90 kg |
Applications and use cases
- Industrial and warehouse rooftops.
- Larger grid-connected commercial plants.
Equipment scope / supply scope
- Manual lists hanging plates, mounting hardware, DC connectors and communication terminals.
Configuration
- String-current checks and AC connection design.
- Monitoring-module technology is confirmed in the quotation.
- AFCI and PV string-current monitoring are optional in the referenced datasheet.
- Manufacturer-described equipment and accessories; the quotation confirms the supplied configuration.
