Schletter
FixGrid Pro
Modular ballasted mounting system for south-facing or east-west commercial roof layouts.

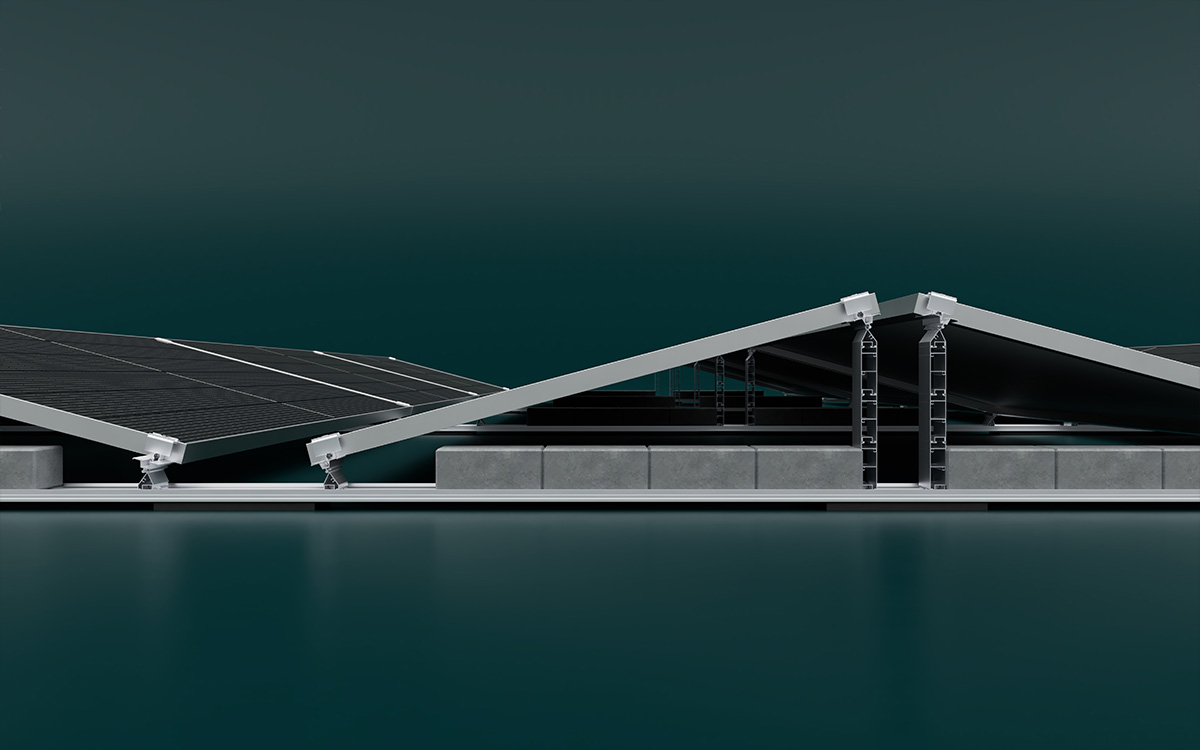

Manufacturer system image; final mounting layout is project-specific.
Technical specifications
| Parameter | Value |
|---|---|
| Module tilt angles | 5° / 10° / 15° |
| Orientation by system variant | FixGrid Pro: S / FixGrid Pro-100: E–W |
| Aluminium system material | EN AW 6063 |
| Stainless-steel connectors | 1.4301+ |
| Maximum raised clearance with support-sheet option | 35 cm |
Applications and use cases
- Ballasted commercial flat roofs.
- South or east–west project layouts using the appropriate variant.
Equipment scope / supply scope
- Project-specific base profiles, elevation elements, module supports, clamps and protection mats.
Configuration
- Schletter Configurator layout and ballast calculation.
- Separate verification of the roof covering and building structure.
- Additional ballast rails/troughs, Windsafe and green-roof support sheets are supplementary items.
- Manufacturer-described equipment and accessories; the quotation confirms the supplied configuration.
