Sigenergy
Sigen EV AC Charger 22 kW
An AC charging solution with network connectivity and configurable energy management for parking and workplace projects.

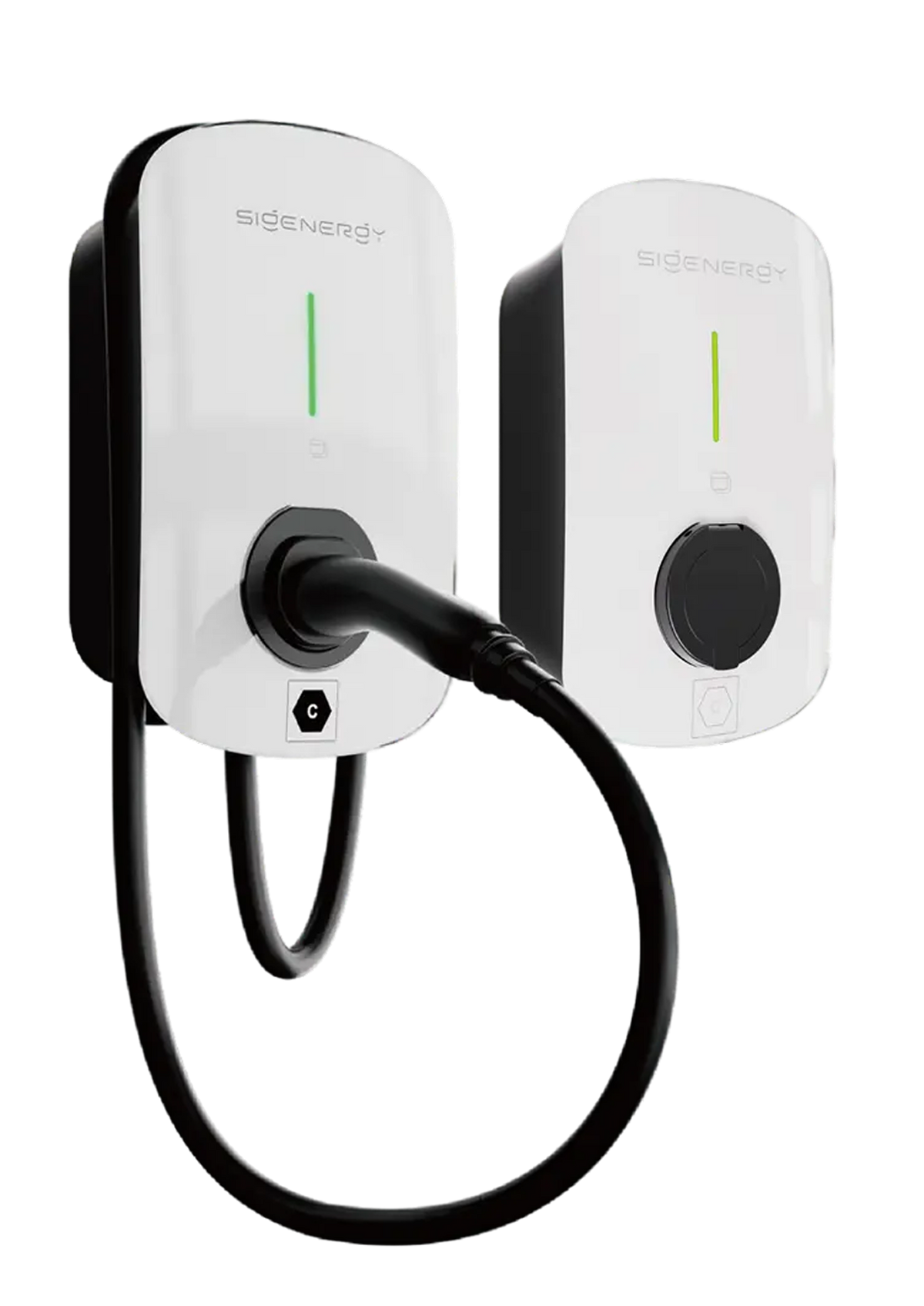

Manufacturer Sigen EV AC series image; cable/socket configuration depends on selected variant.
Technical specifications
| Parameter | Value |
|---|---|
| Rated charging power | 22 kW |
| Rated supply voltage | 220–240 / 380–415 V AC |
| Charging current range | 6–32 A |
| Protection | IP65 / IK10 |
| Communication | 4G / WLAN / Ethernet / RS485 Modbus RTU |
| Backend protocol | OCPP 1.6J |
| Operating temperature | −30 … +55 °C |
Applications and use cases
- AC charging for company vehicles, employees and visitors.
- Solar-surplus and load-managed charging when the specified Sigenergy control components are provided.
Equipment scope / supply scope
- Specify the connector variant: Type 2 cable or Type 2 shuttered socket; the datasheet lists a 5 m standard cable for the cable version.
- Dynamic load management and third-party PV surplus charging require Sigen PowerSensor according to the datasheet. Confirm it in the quotation.
- Some smart-energy features require a SigenStor system; a standalone battery module is not a complete control system. Confirm the full configuration.
Installation considerations
- Wall-mount indoors or outdoors within the specified environment; choose top, bottom or rear cable entry.
- Design the three-phase supply, protective devices and earthing for the configured 6–32 A charging current.
- Commission network access, user authorization and any external RS485 sensor with the selected energy-management arrangement.
