Sigenergy
SigenStack BAT 12.0
A stackable battery platform for commercial projects using compatible Sigen C&I hybrid inverters.

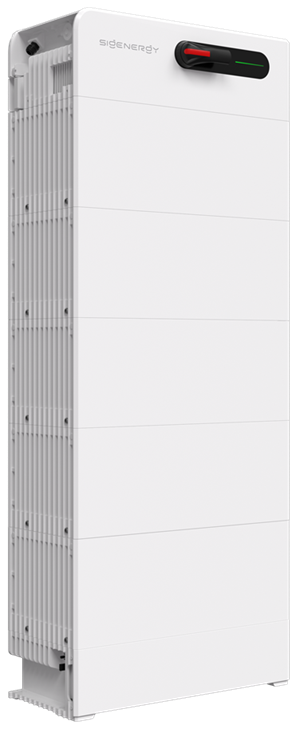

SigenStack series photograph showing a complete stack; module quantity depends on the design.
Technical specifications
| Parameter | Value |
|---|---|
| Module total energy | 12.06 kWh |
| Battery chemistry | LFP |
| Battery cell capacity | 314 Ah |
| Modules per system | 4–21 |
| Modules per stack | ≤ 7 |
| Module protection | IP66 |
| Module dimensions W × H × D | 770 × 300 × 363 mm |
| Operating temperature | −20–55 °C |
Applications and use cases
- Scalable battery storage for commercial solar projects.
- Sites requiring several battery stacks within a manufacturer-designed system.
Equipment scope / supply scope
- This listing identifies one BAT 12.0 battery module, not a complete AC system.
- Battery controller, bases, interconnection and inverter must be itemised for the chosen system.
Configuration
- Select the SigenStack BC variant and compatible commercial hybrid inverter using current manufacturer documentation.
- Controller variants have different limits; PV-connected configurations need the appropriate controller.
Installation considerations
- Floor-standing stacks require a level load-bearing base and safe assembly access.
- Plan air circulation, service clearance, cable routing and commissioning for the complete system.
