Teltonika Energy
EVC 2 — EVC2002100S0
A three-phase socket charger for workplace, hospitality and commercial parking projects.

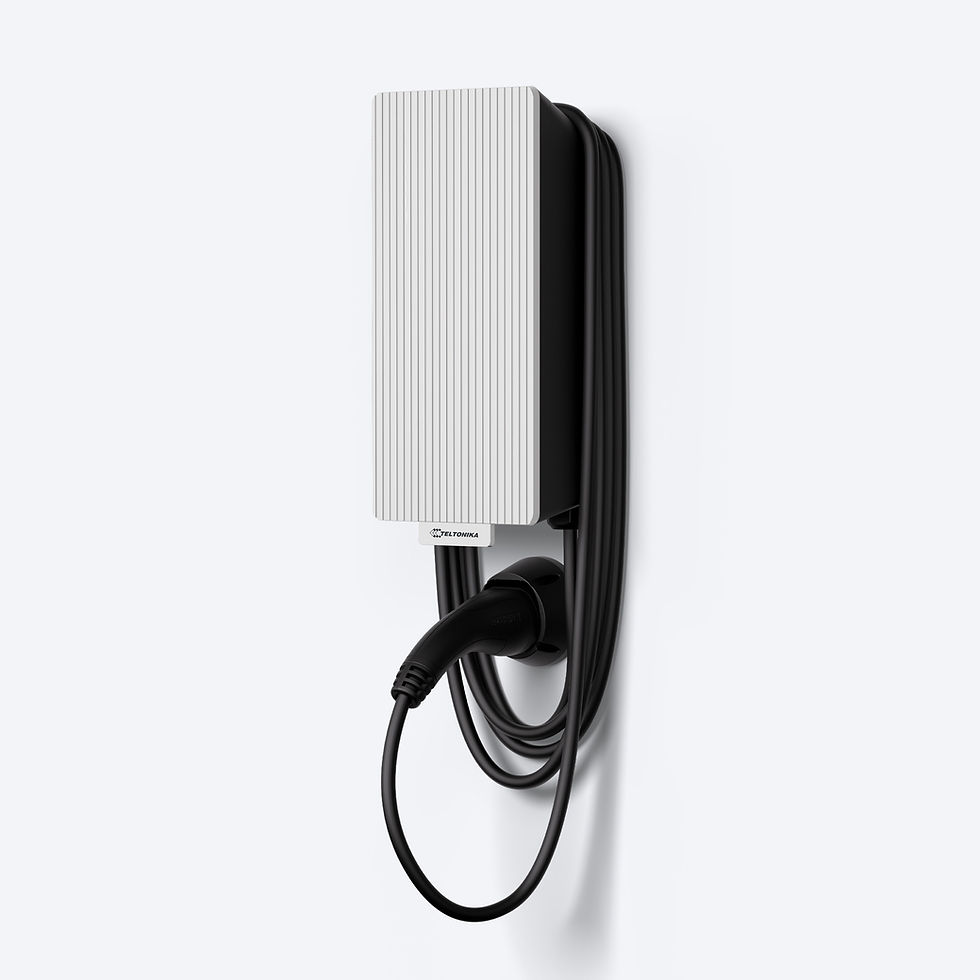

Manufacturer EVC 2 series image; front plate and connection variant may differ.
Technical specifications
| Parameter | Value |
|---|---|
| Maximum charging power | 22 kW |
| Supply | 3 × 400 V AC, 50/60 Hz |
| Maximum charging current | 32 A |
| Vehicle connection | Type 2 socket |
| Enclosure protection | IP56 / IK10 |
| Operating temperature | −30 … +50 °C |
Applications and use cases
- Employee and company-fleet charging at commercial premises.
- Managed charging where the site has a limited electrical connection.
Equipment scope / supply scope
- This entry is the 22 kW socket model EVC2002100S0 with a GSM modem.
- The manufacturer code table lists the charger, NFC card/tag, metal bracket, installation parts and CT clamps; the supplied items must match the quoted order code.
- The exact code is listed without a front panel; choose and quote the front panel separately. A vehicle cable is required for the socket version.
Installation considerations
- An electrician must assess the three-phase circuit, cable size, earthing and required upstream protection using the installation manual and local requirements.
- Set the current limit to the available circuit capacity; install and commission the specified metering arrangement if dynamic load management is required.
- Select a load-bearing wall or a suitable separately specified stand and confirm mobile/network coverage before commissioning.
