FoxESS
A Series 22 kW
An A Series AC charger for business parking, shared charging and renewable-energy charging projects.

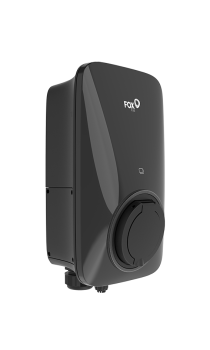

Manufacturer A Series socket charger image; exact configuration is selected for the project.
Technical specifications
| Parameter | Value |
|---|---|
| Maximum AC power | 22 kW |
| Rated supply | 400 V AC ±20%, 3L/N/PE |
| Rated output current | 32 A |
| Housing / socket protection | IP65 / IP55 |
| Impact resistance | IK08 |
| Operating temperature | −30 … +50 °C |
| Dimensions, cable version | 320 × 190 × 130 mm |
| Cable length, cable version | 6 m |
Applications and use cases
- Wall or post-mounted AC charging for a business car park.
- Projects requiring RFID/app access and an OCPP backend, with the exact options selected.
Equipment scope / supply scope
- Select the 22 kW model and connection variant: A022KP1-E-B cable, A022KS1-E-B socket or A022KS-T2S-B shuttered socket.
- 4G is optional and requires an external Micro-SIM, which the datasheet states is not included.
- Confirm post, metering equipment and load-balancing integration in the project quotation. ISO 15118 hardware readiness does not itself confirm an enabled bidirectional service.
Installation considerations
- Provide a three-phase 32 A supply, earthing and appropriately sized circuit wiring.
- The datasheet requires an external RCCB; select Type A or Type B according to local requirements.
- Confirm mounting method, network access and the configured OCPP version with the intended charging platform.
